Shanghai Hanbell was established in 1996 and listed on Shenzhen A-share market in 2007. Jinan, Guangzhou, Nanjing and Chongqing branches have been set up one after another, and the subsidiaries of Zhejiang Hanson, Shanghai Comer, Hanbell HongKong, Hanbell Vietnam, Hanbell Korea and Zhejiang Comer have been set up one after another. All these reflect the achievements of HANBELL people's hard work in the past 27 years.
HANBELL PRECISE MACHINERY COMPANY 27 YEARS OF HISTORYAIMS TO OPEN

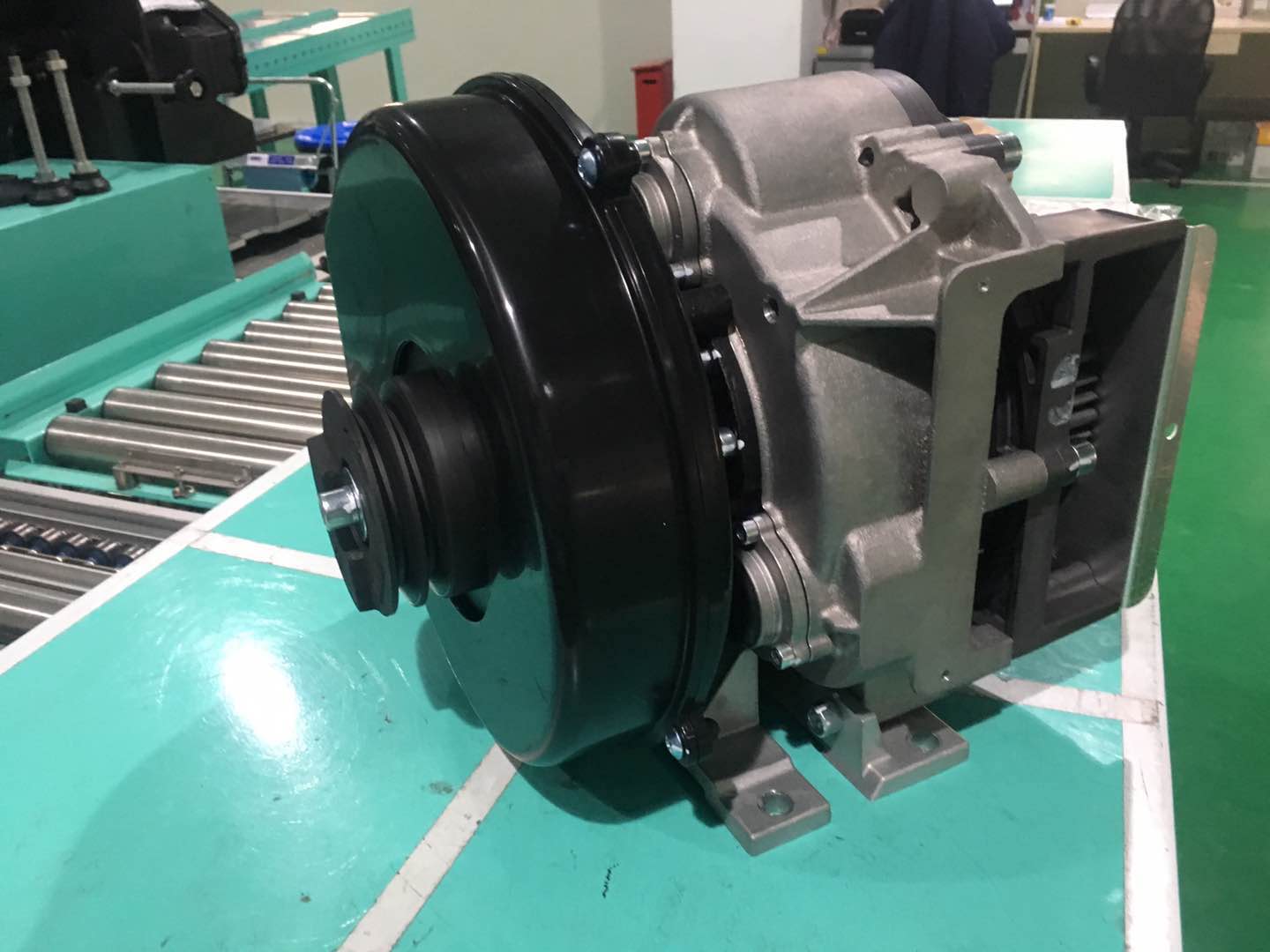

1 、、 High precision machining of orbiting scroll, fixed scroll and shell ensures high efficiency
2 、、 Imported sealing material, the compression chamber and the lubrication transmission part are absolutely separated to ensure that the compressed air is absolutely oil-free
3 、、 Compact structure, less wearing parts compared to the screw air end
4 、、 The cooling fan adopts integral centrifugal fan, low noise, high pressure, large air flow, ensuring enough cooling air volume
5 、、 No need of oil cooling and lubrication, so it is completely oil-free.
Model | 5.5KW | 5.5KW | |
Pressure(bar) | 8 | 10 | |
Rotation speed (rpm) | 3000 | 2500 | |
Air flow (L/min) | 600 | 440 | |
Discharge temperature (℃) | 172 | 205 | |
Ambient temperature (℃) | 21 | 27.1 | |
Electric Current (A) | 10.66 | 11.5 | |
Power (KW) | 5.78 | 6.5 | |
Vibration | Vertical | 7.8 | 8.6 |
Axial | 8.5 | 7.3 | |
Horizontal | 6.8 | 5.4 | |
